Full Wave-Action Simulation Provides Highest Accuracy
Model Multiple Cylinders with Individual or Multiple Expansion Chambers
Multiple Transfer Passages & Auxiliary Ports
Rotary, Port or Reed Valves
Accurately Predicts Power, Torque, BSFC, PMEP, Cylinder Pressures, and Much More!

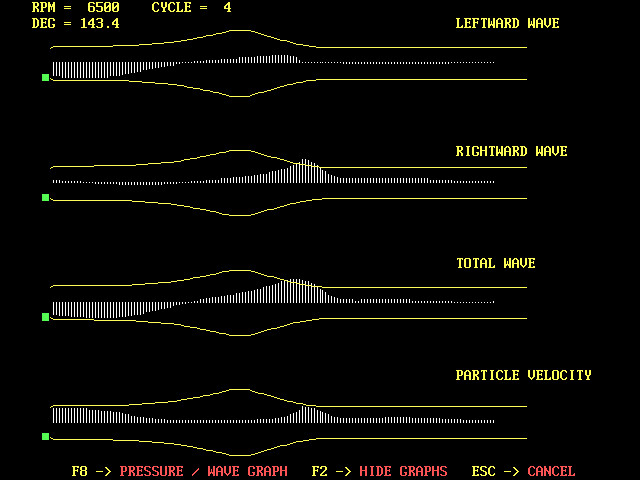

Design/Tune Expansion Chambers with LIVE View of Pressure Waves!
DOS-Based Program Now Runs On All Versions Of Windows (including 10 and 11)
Compatible with any Windows PC

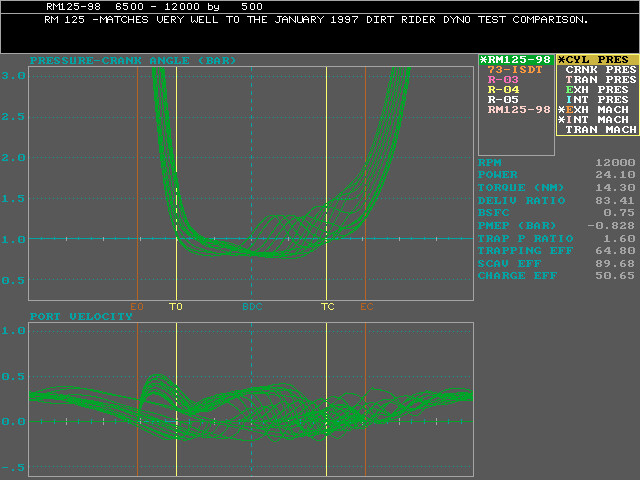

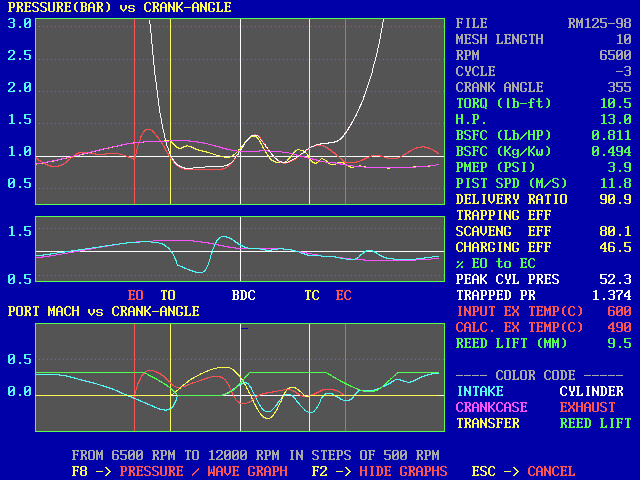

DynomationTwoStroke is a full-cycle, wave-action simulation that lets you peer inside a running two-stroke engine! It reveals–otherwise invisible–pressure waves and mass flow into and out of cylinders, engine passages, and expansion chambers. This simulation accurately predicts power, torque, and many other engine parameters. Even more importantly, it show you where you should focus your efforts to optimize performance!

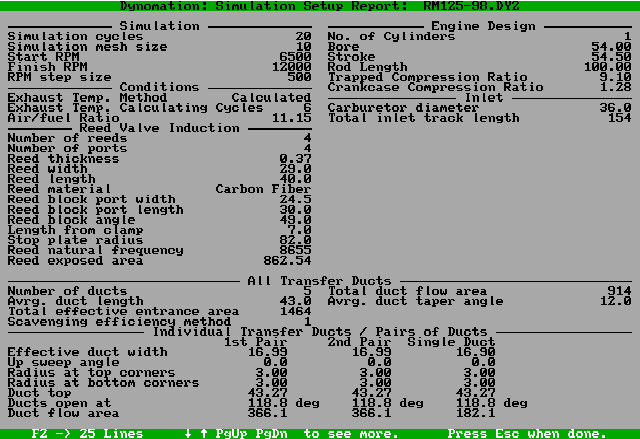

DynomationTwoStroke calculates the complete fluid-dynamic, thermodynamic, wave-dynamic, and frictional conditions that exist inside the cylinders, ports and runners throughout the entire two-cycle process. You setup engine models in just minutes to simulate engines with Piston-Port, Reed, or Rotary valving. Design expansion chambers, watch pressure-waves as they move in exhaust ducting. Perform "what if" testing to zero-in on the best combinations for any application.
With DynomationTwoStroke, you'll be able to accurately predict engine performance and optimize power, fuel consumption, and reliability. No other two-stroke engine simulation comes close to DynomationTwoStroke for simulation accuracy, low cost and ease of use. More information available here: DynomationTwoStroke Engine Simulation (motionsoftware.com)
